Rating: 400-500-600-800 kVA
380 -415 V (three-phase)
Freq. 50-60Hz
Double conversion On-line
Input: THDi < 3% PF 0.99
Output: THDv < 1 % THDv < 5 % (non linear load)
Dynamic Response ±5% (100% load step)
Overload 125% 10min, 150% 1min (Pn)
Short circuit 1.5In
Battery: 300 cells, 680V floating

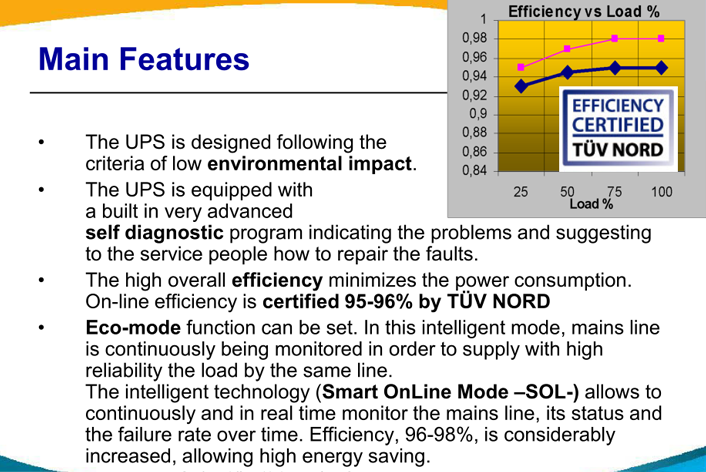

Total efficiency : 95-96 % Certified TüV NORD (Up to >98% in ECO MODE)
